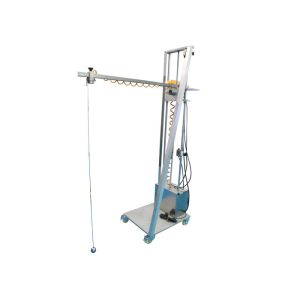

IEC 62368-1 Annex T.6 Figure T.1 Steel Ball Horizontal and Vertical Impact Test Device
Product Information:
Standard: Conforms to IEC 62368-1:2018 Annex T.6 Figure T.1 and T.9, IEC 60950-1: 2013 Clause 4.2.5, IEC 60065:2014 clause 12.1.4 fig.8, 12.7.3.5, IEC 60598-1 Clause 4.13.4a, etc.
Application: This device is suitable for drop impact test for equipment enclosure.
Test sample: Luminaries, Audio, video and similar electronic apparatus, Information technology equipment
Feature: Equipment can carry out test in two forms of vertical drop and swing impact
Technical Parameters:
| Applied standard | IEC 62368-1 |
| Applied clause | Annex T.6 |
| Impact steel ball | Diameter 50mm±1mm, 500±25g |
| Impact method | Vertical impact and horizontal impact methods can be switched |
| Drop height | 0.4-1.5m adjustable |
| Lift mode | Electric |
| Clamping release mode | Ball is attracted and released by electromagnet |
| Impact energy | G=mgH, can achieve 0.5J, 1J,2J, 3.5J |
| Power supply | 220V, 50Hz |
