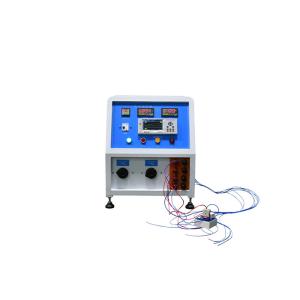

IEC 60884-1: 2022 Test Set Up For Plugs And Sockets Temperature Rise Test
Product Information For Test Set Up:
The device is made and manufactured according to the related standard requirement of temperature rising, such as IEC 60884-1:2022 clause 19, IEC 60669-1:2017 Clause 17, VDE0620 etc. It is applicable to the temperature rising of electronic accessories in working position.
Technical parameters For Test Set Up:
| Model | SN2119 |
| Test stations | 2 stations are independently adjustable, each group has two outputs in series |
| Test current | 0-60A |
| Test voltage | <12V |
| Digital display current value | Accuracy: ±0.5%FC±2d |
| Timing | Digital display, range 0～99.99s～99.99m～99.99h can be selected, alarm when time arrives |
| Temperature measurement | Adopt temperature inspection instrument, 8 channels, LCD digital display, with temperature-time curve |
| Power supply | AC220V±10%/50-60Hz |
| Standard | IEC 60884-1 |
| Test samples | Plug and socket-outlets |
Applications For Test Set Up:
| Samples | Household appliance plugs and sockets |
| Test purpose | Test the temperature rise of electrical accessories under working conditions |
| Test principle | Use voltage and current to simulate the normal use of the workpiece, and measure the temperature rise after a certain period of time |
| Equipment structure and characteristics | External type, with built-in temperature measuring meter, the thermocouple wire is directly connected to the sample Equipment dimensions: about: 600 × 600 × 600 (mm) W × D × H, equipment weight: 100kg |
| Use environmental | Power supply: AC220V±10%/50-60Hz, working temperature 0-40℃, humidity 30%-90%. |
