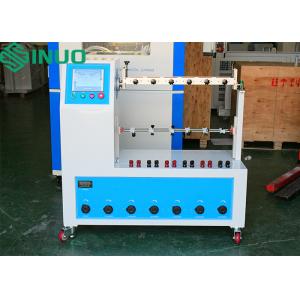

Power Cord Flexing Tester With Load Bank For Non-Rewirable Plugs And Socket-Outlets
Product Information:
This cord flexing test apparatus is designed to perform the required flex endurance testing specified in IEC 60884-1:2022, Figure 21, Clause 23.4. It’s used to precisely evaluates the flexible cable of non-rewirable plugs and non-rewirable portable socket-outlets.
Technical parameters:
| Power Supply | Three-phase four-wire with ground, AC 380V ±10% / 50Hz |
| Workstation Load Current | 6 independent stations, AC 1–40A manually adjustable. When the preset number of open-circuit occurrences (errors) of the tested wire is reached, an alarm will sound and that station stops counting. |
| Inter-station Voltage | AC 10–300V manually adjustable. In case of short-circuit between the two poles, an alarm is triggered and the station stops counting. |
| Work stations | 6 independent workstations, each counting bending cycles separately. |
| Control System | Servo motor + PLC + color touchscreen control |
| Sample Clamp Capacity | Can hold samples with a diameter up to 20 cm |
| Flexing Angle | ±10–360°, presettable via touchscreen |
| Flexing Speed | 0–60 cycles/min, presettable via touchscreen |
| Starting Zero Angle | 0–±180°, presettable via touchscreen |
| Weights | 113g, 284g, 500g, 10N, 20N; 6 sets each |
| Cycle Count Range (Lifetime) | 0–999,999 cycles, presettable via touchscreen. Station stops and alarm triggers when reached |
| Error Count Range | 0–999, presettable via touchscreen. Station stops and alarm triggers when reached |
| Test Modes | Mode 1: Current and inter-wire voltage output Mode 2: Current output only |
| Protection Features | Overall machine protection against over-voltage, over-current, short circuit, and leakage |
